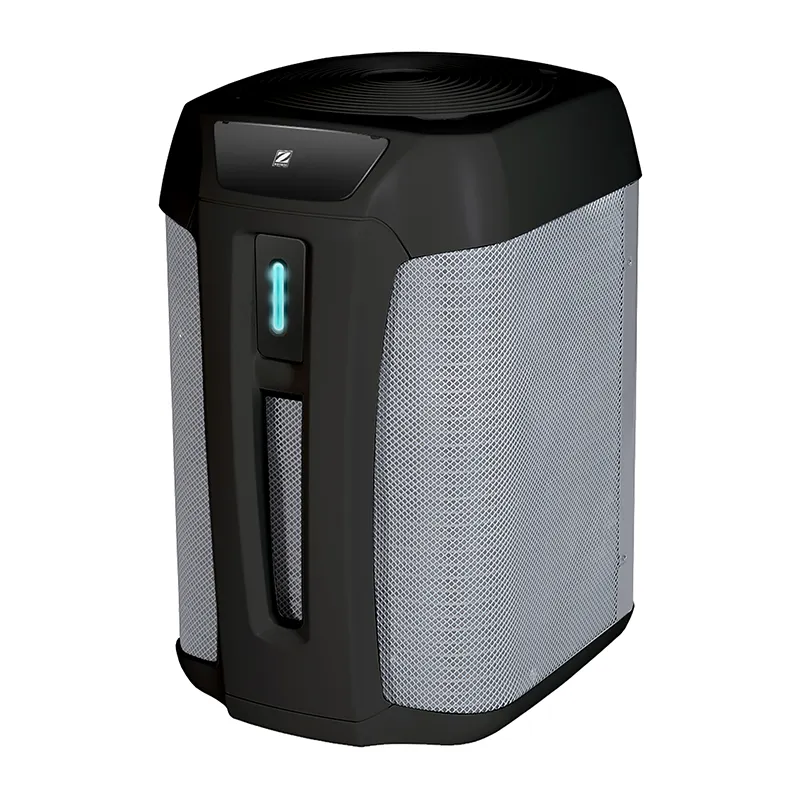

Zodiac Z550iQ MD4 Heat Pump

Zodiac Z550iQ MD4 Heat Pump Zodiac Z550iQ MD4 Heat Pump Zodiac Z550iQ MD4 Heat Pump
** Only 1 unit available. **
The Zodiac Z550iQ MD4 Heat Pump features full inverter technology for quiet, energy-efficient pool heating. Easy to install and highly efficient, it draws up to 80% of its heating energy from the surrounding air.

Suitable for pools up to 7.5m x 3.5m x 1.5m.
Availability: 1 in stock
Free Shipping

Was:

£4,365.00

Now

£2,200.00

Free UK Delivery Over £60*
UK Mainland Only (Excludes Highlands)
Excludes Hot Tubs & Swimspas

All Prices include VAT
*Some product exclusions apply; see individual products for any applicable surcharges

The Zodiac Z550iQ MD4 Heat Pump offers advanced energy-efficient heating performance with a compact vertical-blow design, making it ideal for areas where space is limited. Featuring full inverter technology, the Z550iQ intelligently adjusts output to maintain comfortable pool temperatures while operating quietly and reducing running costs.

This unit requires a 16 amp power supply with a type D breaker.



Features

  • Patented titanium heat exchanger for long-lasting durability
  • Polypropylene body
  • Automatic defrosting
  • LCD display
  • Full inverter technology for efficient and quiet performance
  • Three operation modes: Boost (rapid heating), Smart (balanced output), and Ecosilence (low noise/energy saving)
  • Built-in Wi-Fi control via the Fluidra Pool app
  • Operates effectively down to -15°C with automatic defrost
  • Compact vertical-blow design suitable for small or restricted spaces
  • Product Dimension: Length 615mm x Height 997mm x Depth 706mm
  • Product Weight: 54kg
  • Includes winter cover, condensate drain kit, PVC unions and anti-vibration feet
  • 3 Year Warranty





    		 ZZ550iQ MD4

    Air 28oC/Water 28oC /80% Humidity



    Heating Capacity
    (kW) max speed

    12.5 - 7.9

    Consumed Power
    (kW)

    2 - 1.05

    Average COP

    6.1 - 7.6

    Air 15oC/Water 26oC/70% Humidity



    Heating Capacity
    (kW)  max speed

    9.5 - 5.5

     Consumed Power
    (kW)

    1.9 - 0.95

    Average COP

    4.9 - 5.7

    Technical Specifications



    Recommended Water Flow (m³/hr)

    4

    Voltage

    230v/1/50hz

    Nominal Current Input Amp

    9- 1,7

    Maximum Current Input Amp

    9

    Acoustic Power (dB/A)
    @ max-min speed

    64 - 56

    Acoustic Pressure at 10m (dB/A)
    @ max-min speed

    33 - 25

    Dimensions in mm (WxDxH)

    615 x 997 x 706


    Environmentally Friendly & Cost Saving

Overview

The Zodiac Z550iQ MD4 Heat Pump offers advanced energy-efficient heating performance with a compact vertical-blow design, making it ideal for areas where space is limited. Featuring full inverter technology, the Z550iQ intelligently adjusts output to maintain comfortable pool temperatures while operating quietly and reducing running costs.

This unit requires a 16 amp power supply with a type D breaker.



Features

  • Patented titanium heat exchanger for long-lasting durability
  • Polypropylene body
  • Automatic defrosting
  • LCD display
  • Full inverter technology for efficient and quiet performance
  • Three operation modes: Boost (rapid heating), Smart (balanced output), and Ecosilence (low noise/energy saving)
  • Built-in Wi-Fi control via the Fluidra Pool app
  • Operates effectively down to -15°C with automatic defrost
  • Compact vertical-blow design suitable for small or restricted spaces
  • Product Dimension: Length 615mm x Height 997mm x Depth 706mm
  • Product Weight: 54kg
  • Includes winter cover, condensate drain kit, PVC unions and anti-vibration feet
  • 3 Year Warranty





    		 ZZ550iQ MD4

    Air 28oC/Water 28oC /80% Humidity



    Heating Capacity
    (kW) max speed

    12.5 - 7.9

    Consumed Power
    (kW)

    2 - 1.05

    Average COP

    6.1 - 7.6

    Air 15oC/Water 26oC/70% Humidity



    Heating Capacity
    (kW)  max speed

    9.5 - 5.5

     Consumed Power
    (kW)

    1.9 - 0.95

    Average COP

    4.9 - 5.7

    Technical Specifications



    Recommended Water Flow (m³/hr)

    4

    Voltage

    230v/1/50hz

    Nominal Current Input Amp

    9- 1,7

    Maximum Current Input Amp

    9

    Acoustic Power (dB/A)
    @ max-min speed

    64 - 56

    Acoustic Pressure at 10m (dB/A)
    @ max-min speed

    33 - 25

    Dimensions in mm (WxDxH)

    615 x 997 x 706


    Environmentally Friendly & Cost Saving
